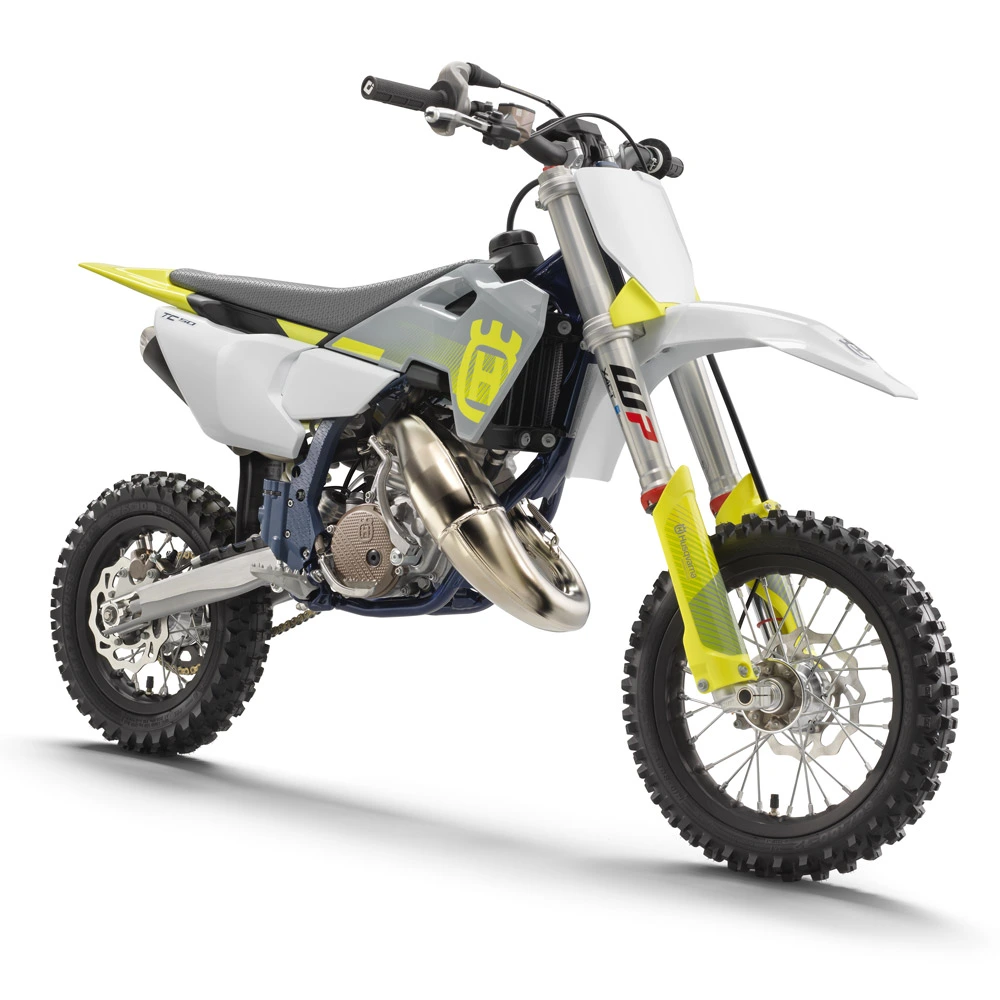

TC 50

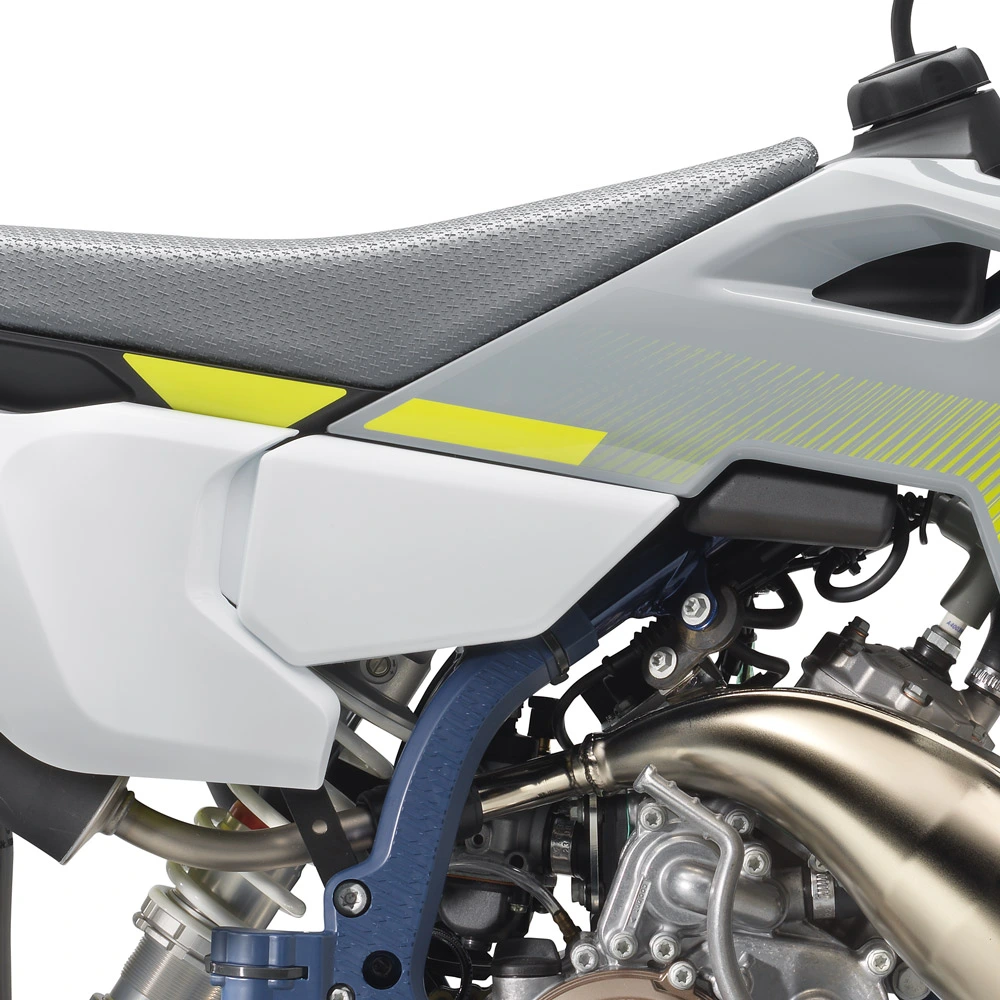

Bodywork

The clean and sleek bodywork is scaled down from what is found on the full-size machines and offers the same proven ergonomics. By replicating the design, youngsters will benefit from the larger contact points that allow them to grip the bike tighter with their legs for enhanced control. In addition, a flatter seat profile offers unrestricted movement.

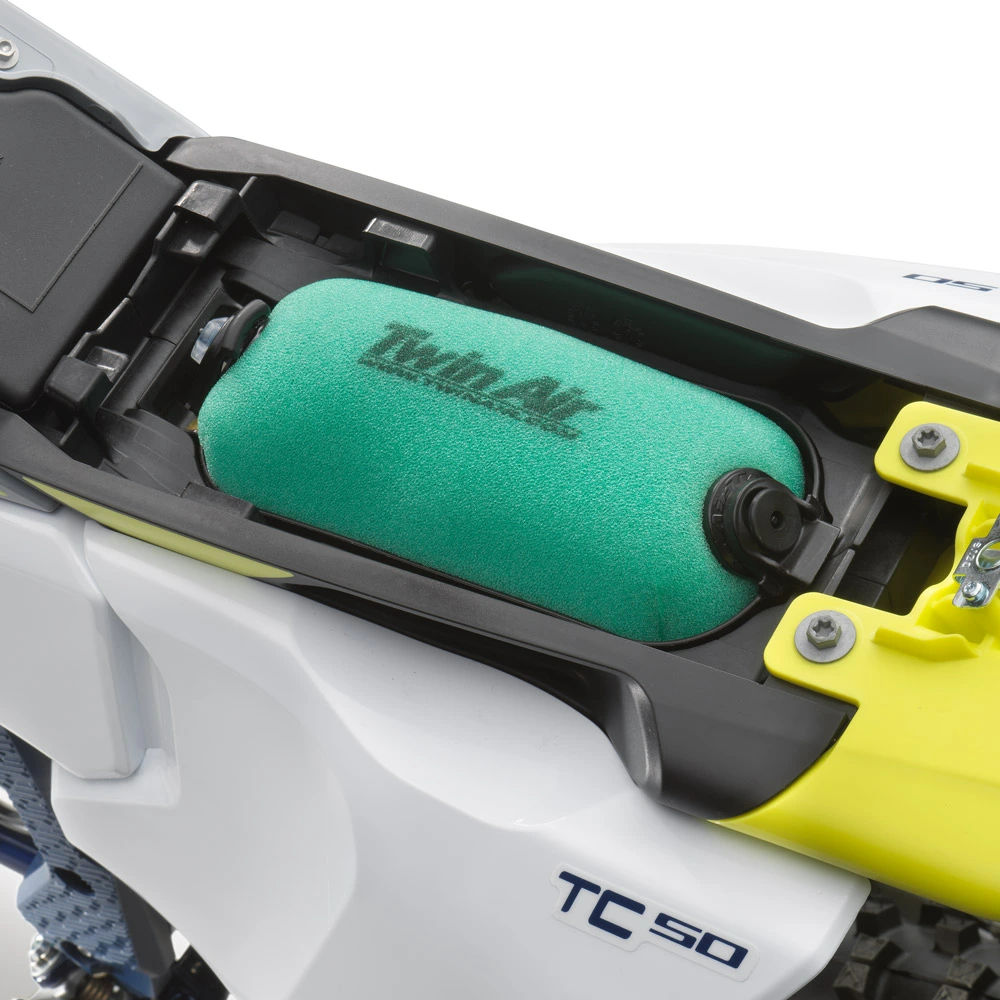

Airbox

A simple installation process allows fast, clean, and easy air filter changes. The Twin Air filter, which features a large surface area for increased air flow, is fitted as standard and can be easily accessed by removing the quick release seat by hand.

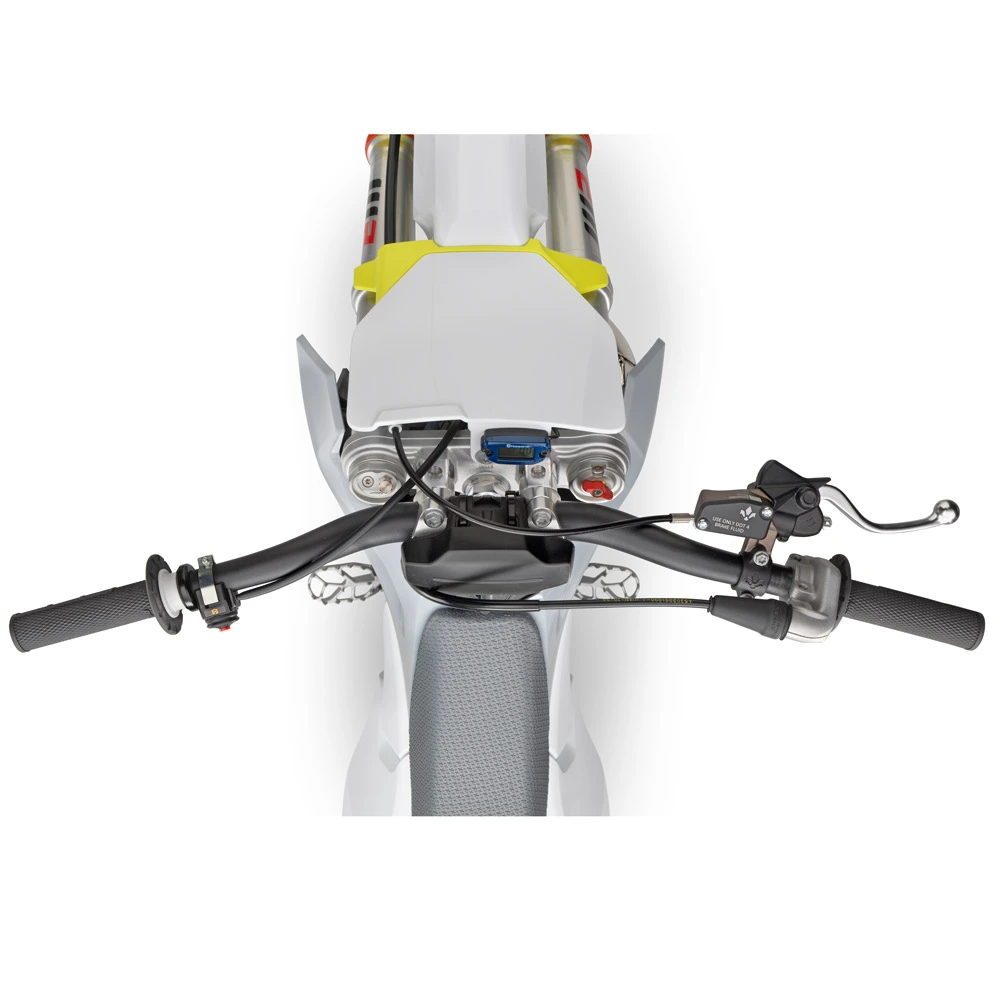

Handlebars & grips

High-quality aluminium handlebars with a black anodised finish ensure reduced vibration and maximum stability. The wide bar bend enhances comfort and leads to better body positioning with thin diameter ODI grips allowing for a heightened level of control.

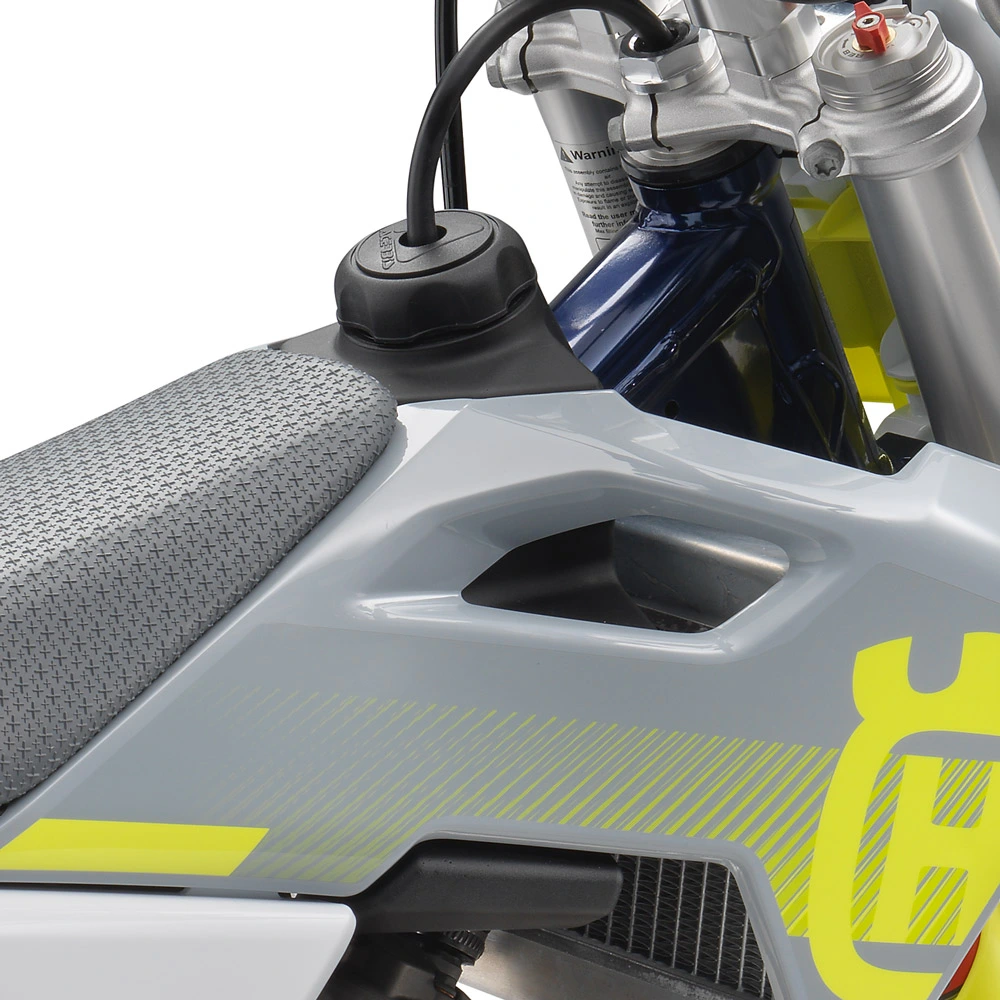

Fuel tank

Sleek in design to fit onto the frame and inside the ergonomic bodywork, the slim fuel tank offers an ample fuel capacity of 2.35 litres.

Adjustable ergonomics

To accommodate youngsters of different sizes, the TC 50 offers multiple adjustment options to suit a wider range of riders, based on their height and set-up preference. The handlebars can be mounted in four different positions, the rear shock can be positioned from standard high position into a lower setting, and the subframe and bodywork can be installed in two different places to suit each individual rider.

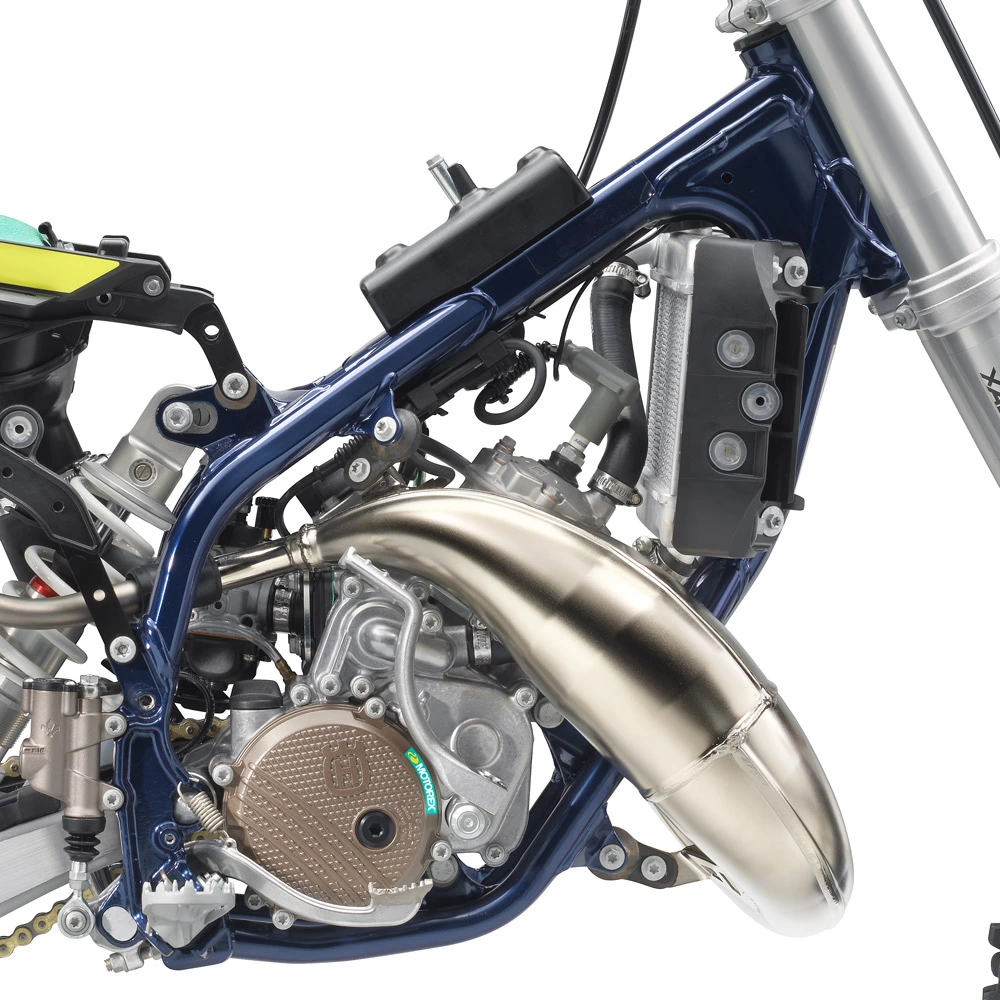

Frame

The frame of the TC 50 is made from chromium molybdenum steel and enhances the riding experience thanks to its precise geometry and calculated flex. Utilising a proven design concept, the shock is not connected to the upper frame tube to reduce the energy transferred through the chassis, which leads to greater stability. Frame protectors with a textured surface enhance control in all conditions and protects the dark blue metallic powder coating from wear.

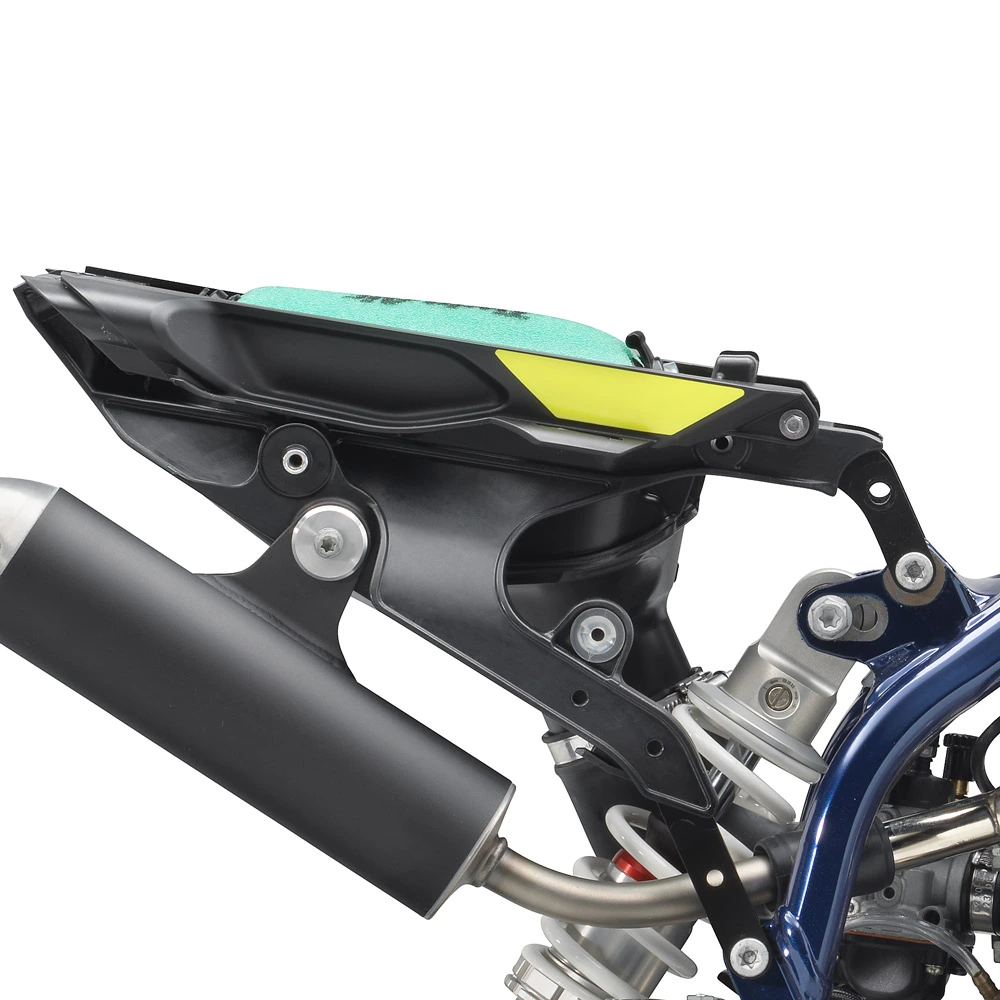

Subframe

Manufactured using a combination of polyamide glass fibre and steel, this hybrid construction offers exceptional reliability. Robust, lightweight, and durable, the subframe plays a vital role in the handling of the TC 50 and it can be adjusted in height for personalised ergonomics.

Forged triple clamps

Forged triple clamps align the forks perfectly and ensure smooth, uncompromised performance from the WP suspension. The triple clamps offer calculated flex characteristics without sacrificing stability.

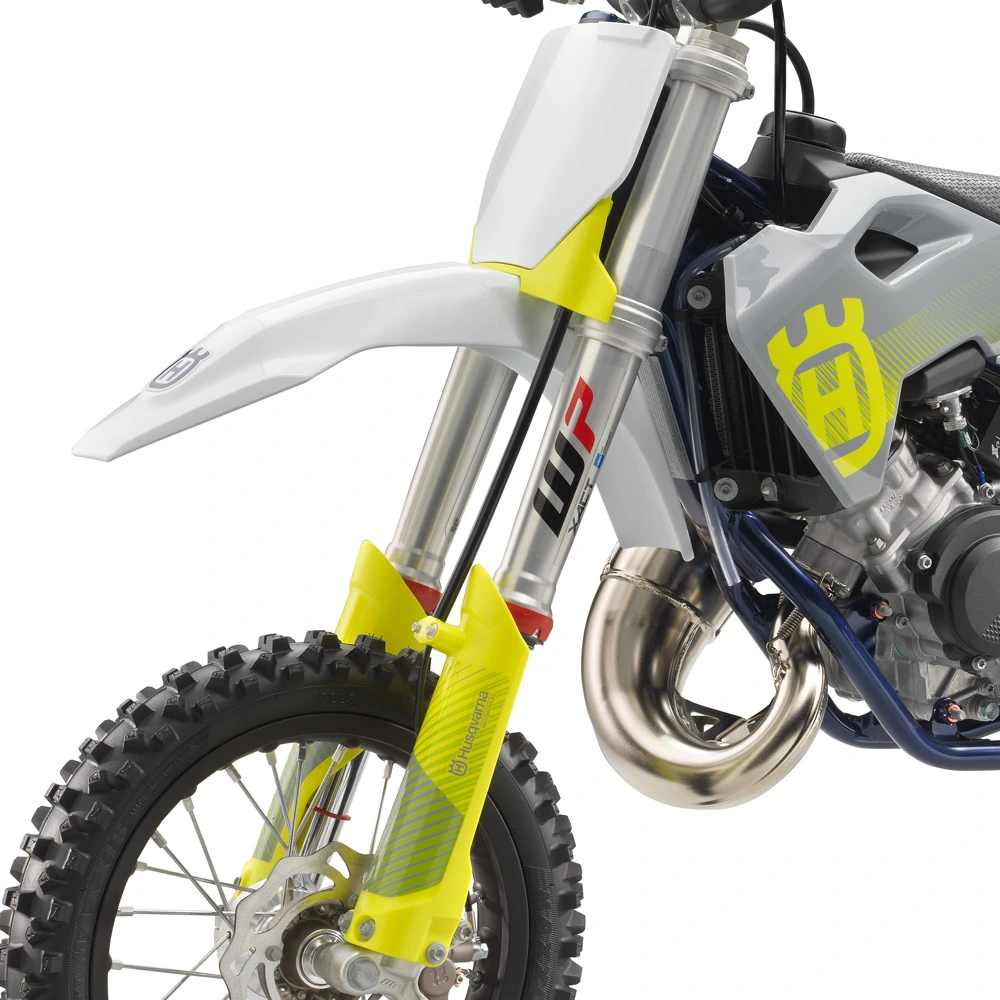

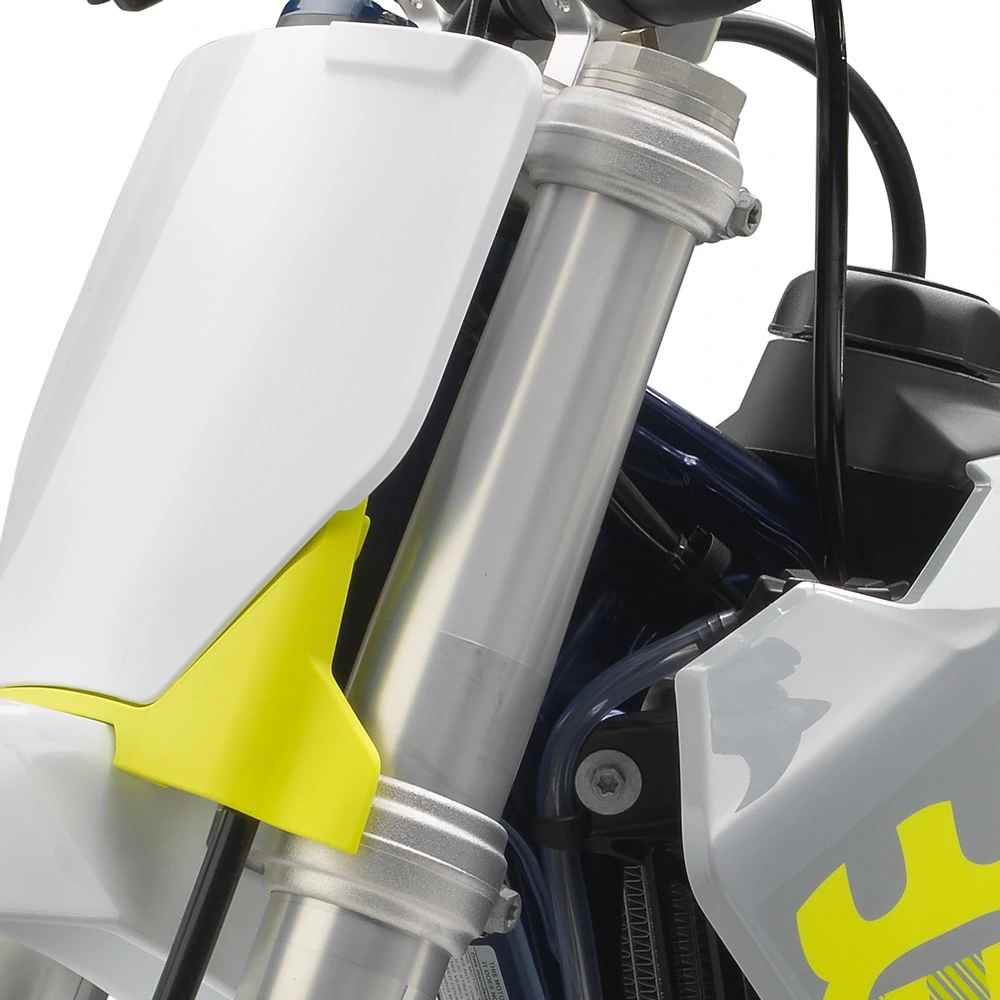

WP forks

Featuring the latest in suspension technology, the TC 50 is equipped with 35 mm WP XACT-USD forks. Besides being very lightweight, the forks offer exceptional damping and comfort, which allows for youngsters to ride with complete confidence. Offering 205 mm of wheel travel, the air spring in the left fork leg can be easily adjusted using the supplied air pump to create the perfect set up for any rider.

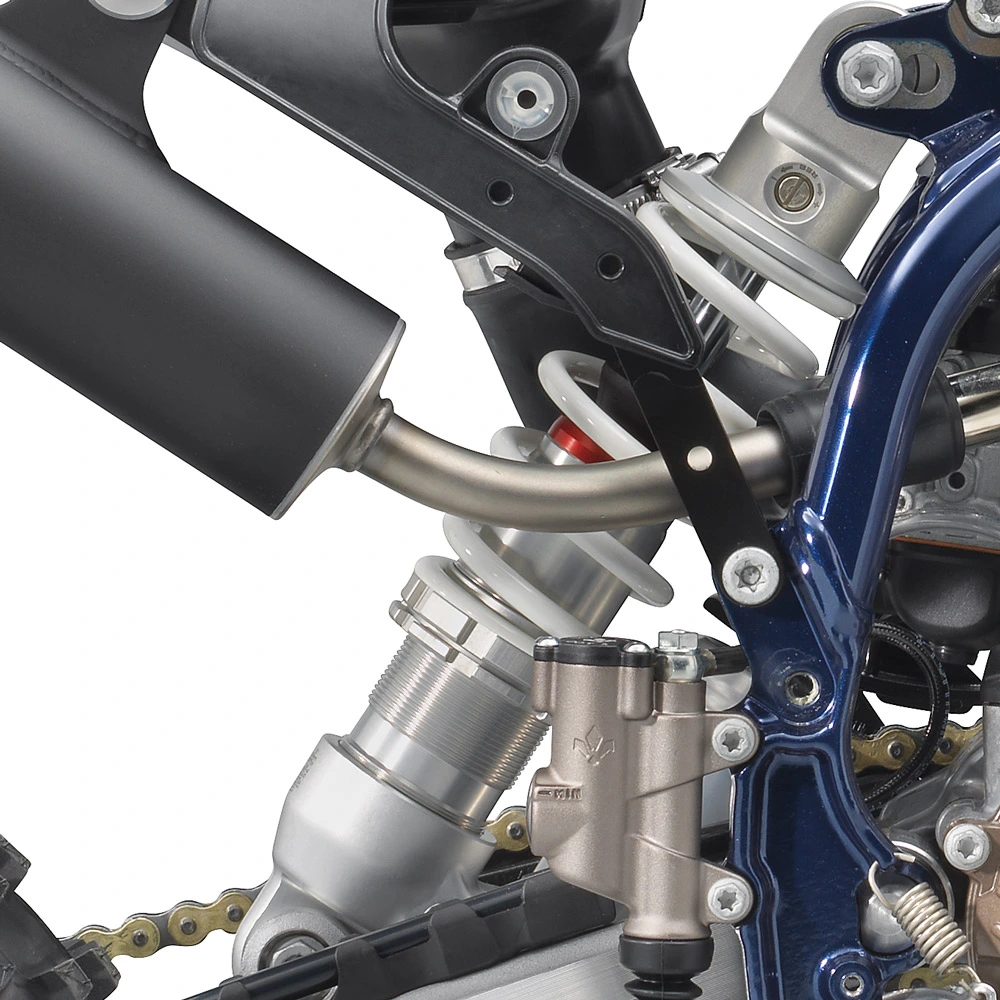

WP shock

Connecting directly to the swingarm, the WP XACT monoshock is updated with revised settings to enhance the damping characteristics and improve the overall balance of the TC 50. With the ability to adjust the preload, high and low speed compression, and rebound settings, the WP XACT monoshock can be set up to suit any rider.

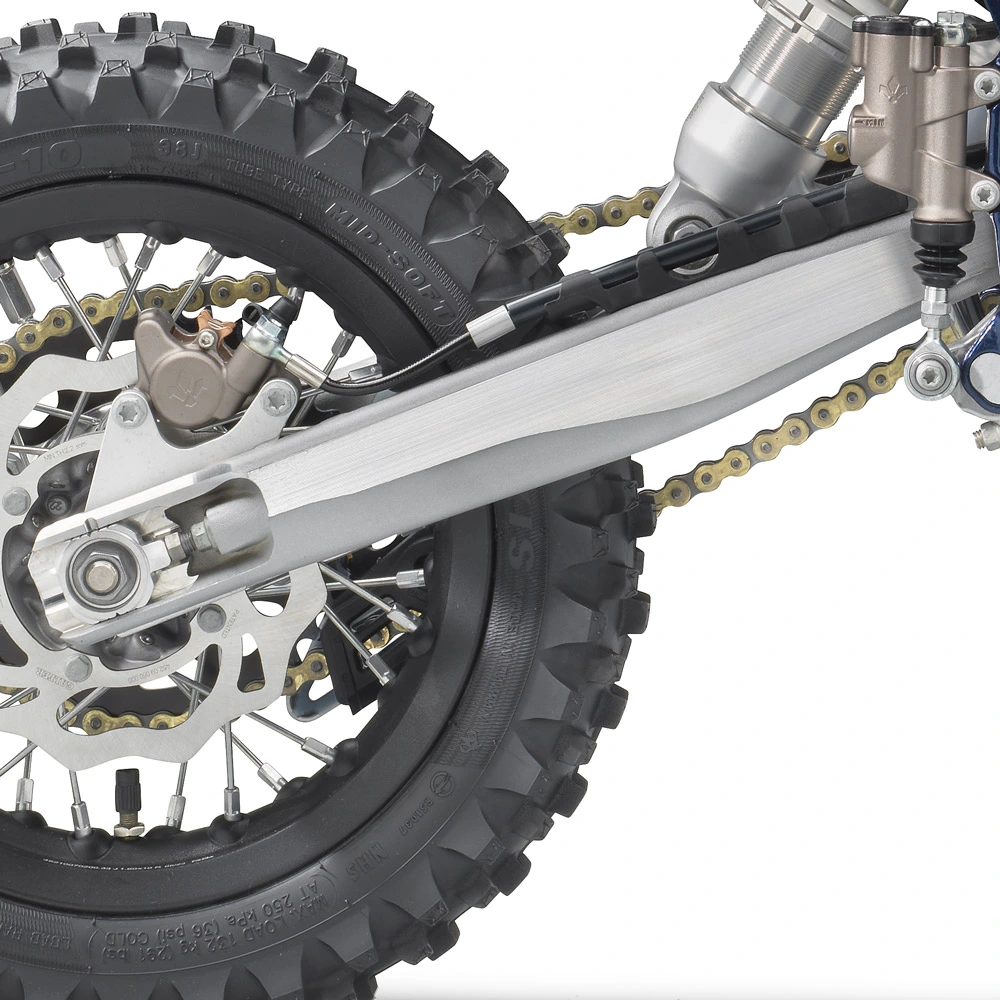

Swingarm

The hollow die-cast aluminium swingarm is manufactured from a single piece of aluminium for optimal stiffness. In order to optimise and match the flex characteristics of the new frame, a 12 mm rear axle is fitted. Additionally, the chain guard and chain slider are designed to prevent mud from building up around the swingarm.

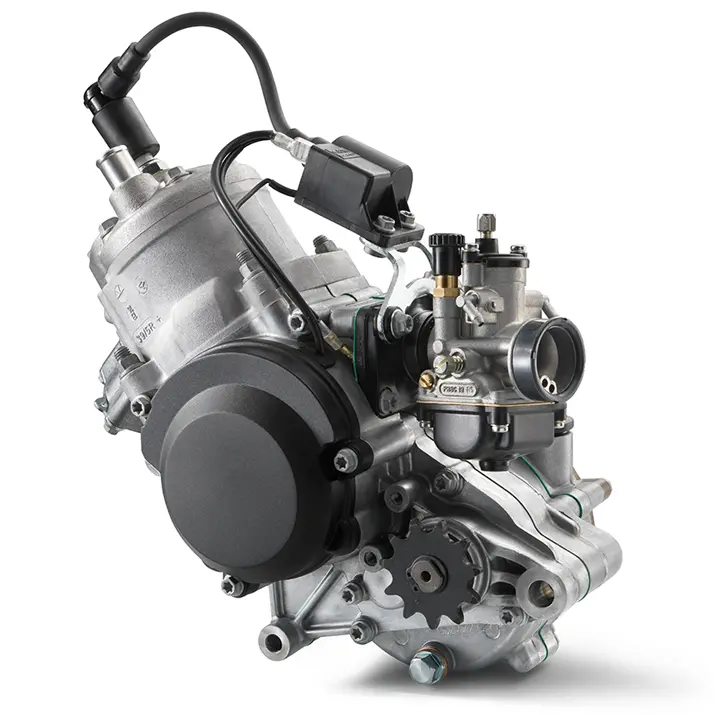

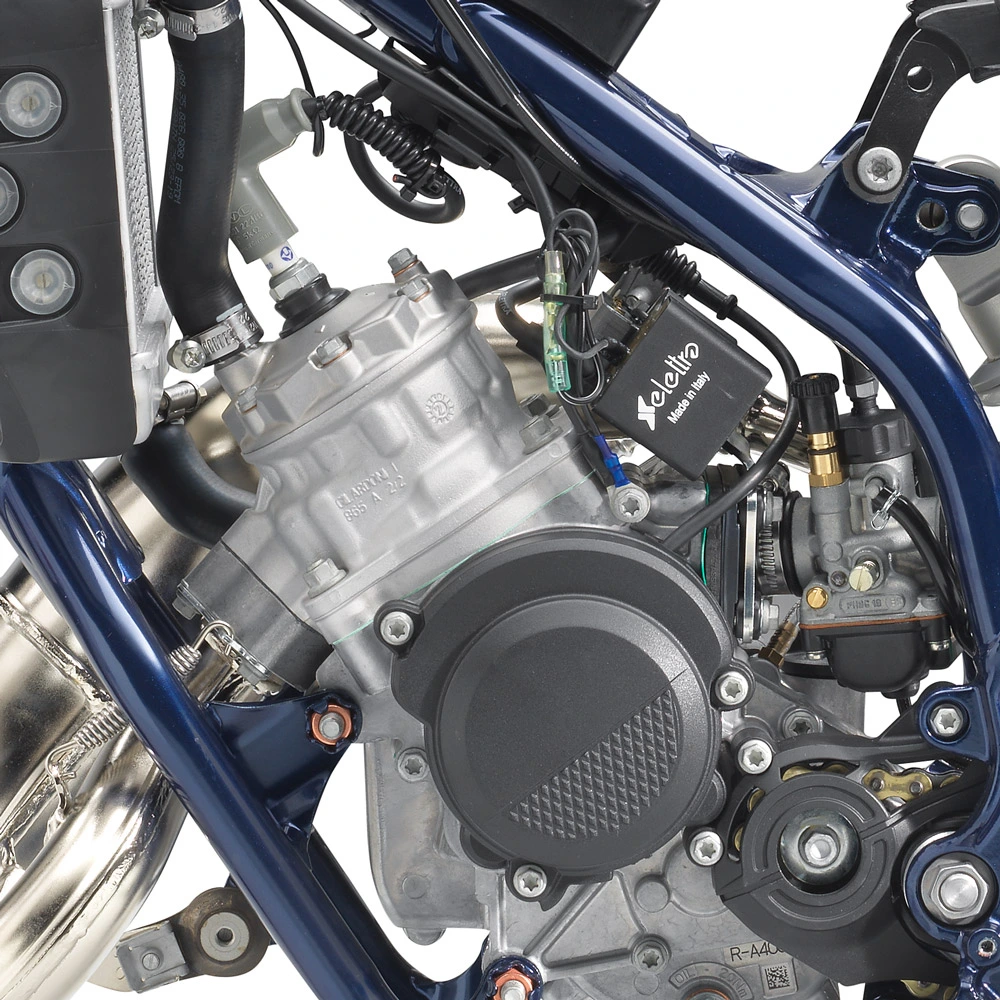

Engine

The compact and powerful TC 50 engine features the latest 2-stroke technology and produces a broad spread of usable power to benefit every rider. The crankshaft is positioned close to the centre of gravity to not only enhance overall handling, but to create the perfect intake angle for generating exceptional performance.

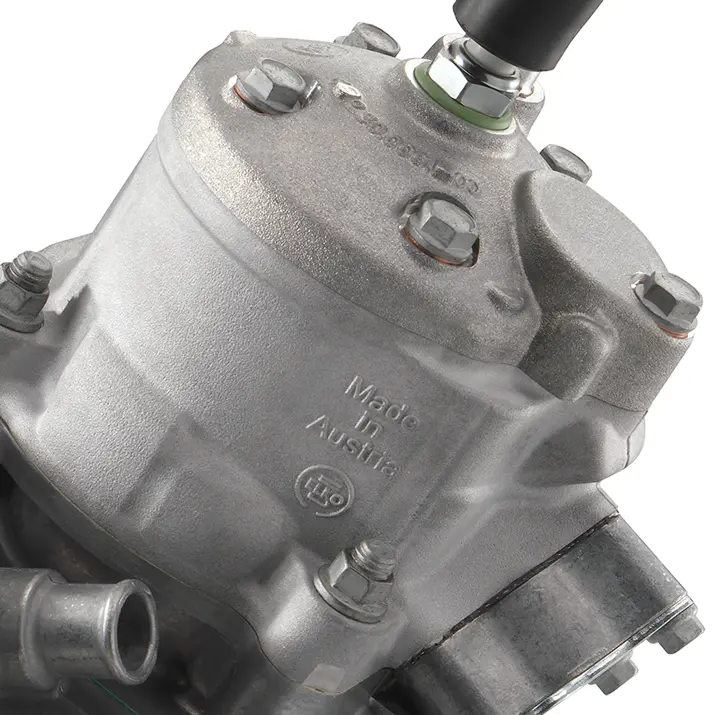

Cylinder head

Unique cylinder head inserts are made specifically for the TC 50 and significantly enhance heat conduction. Thanks to their design, the inserts are not compatible with other TC models.

Carburetor

The settings inside the proven Dellorto PHBG 19 BS carburettor maximise engine performance and ensures the TC 50 runs cleanly throughout its rev-range.

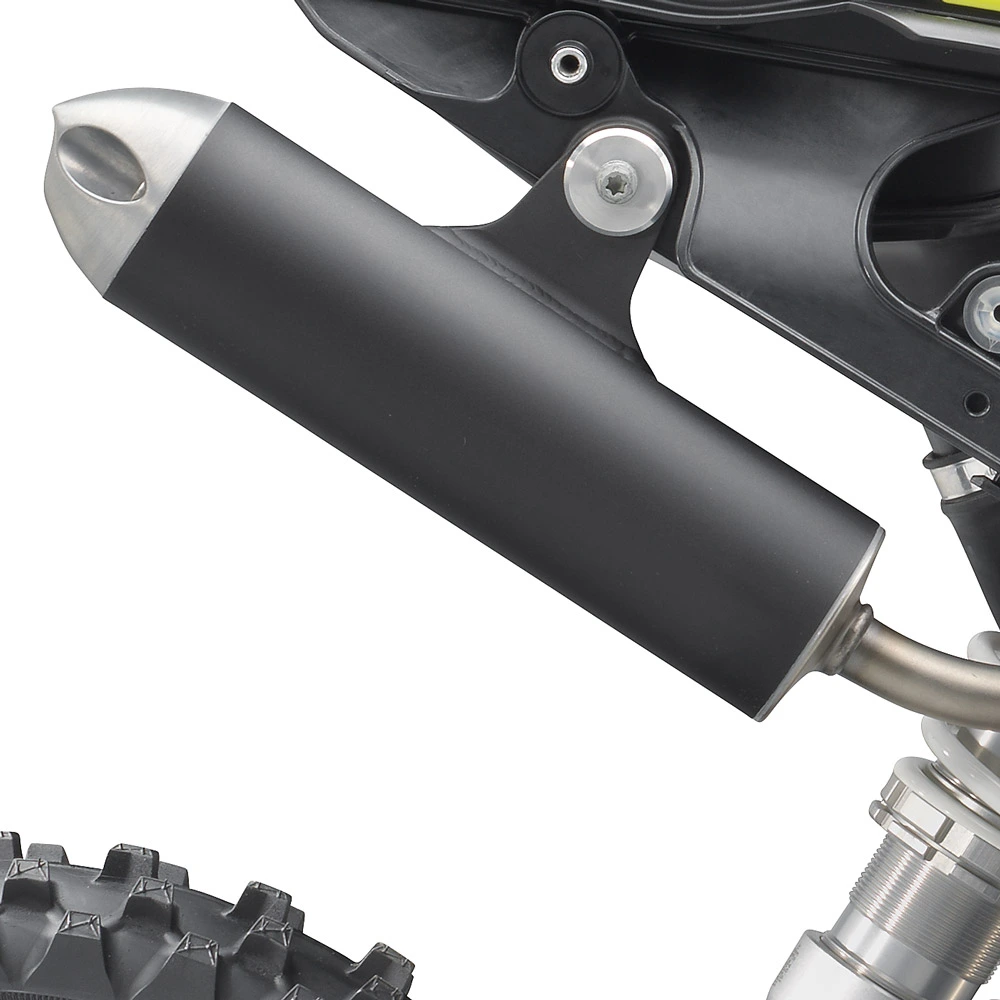

Exhaust system

The exhaust system boosts performance of the TC 50 considerably. With the welding seams removed from the inside, exhaust gas flow is unrestricted and maximum power is delivered. The silencer now features a tighter sealing around the end cap and is complete with a black anodised finish.

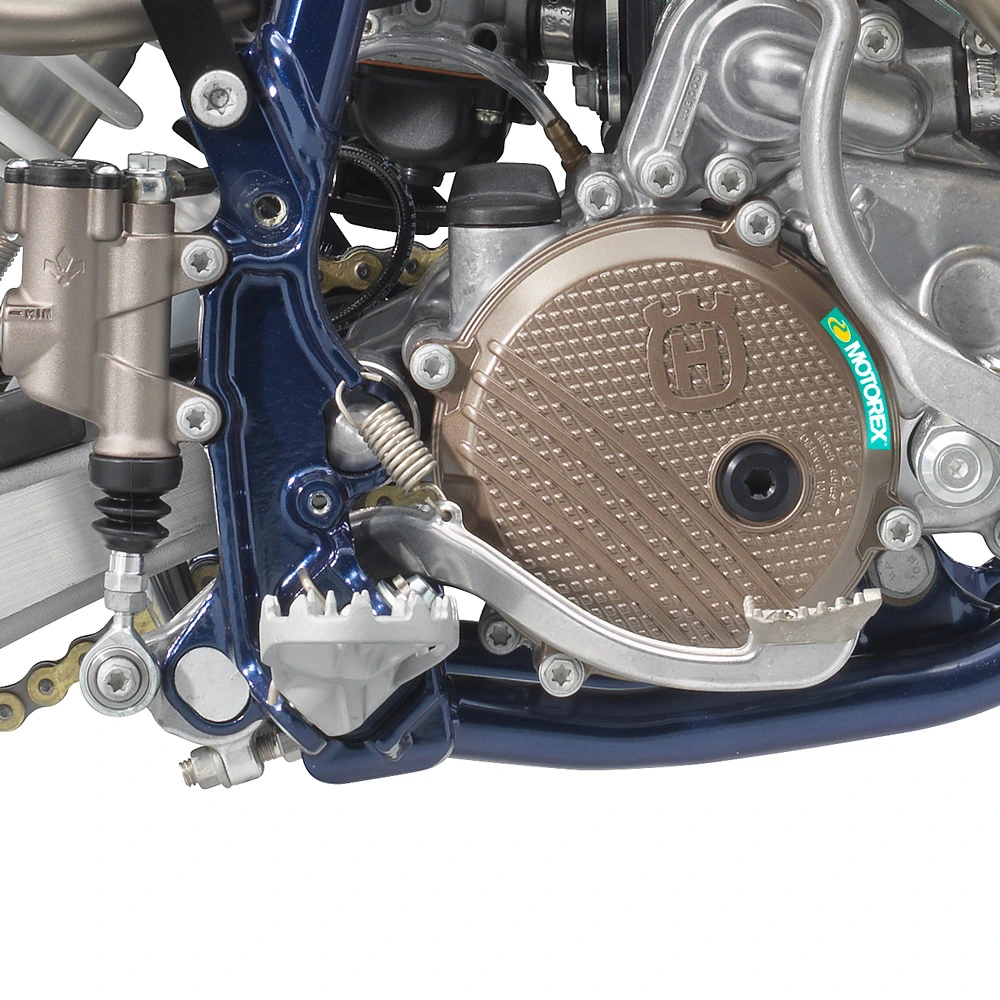

Automatic clutch

With a reinforced basket and high-quality plates, the automatic clutch inside the TC 50 offers excellent durability and consistent performance. The clutch pack is assembled using Torx bolts to make inspection and replacement easier while the gasket behind the clutch cover offers exceptional sealing.

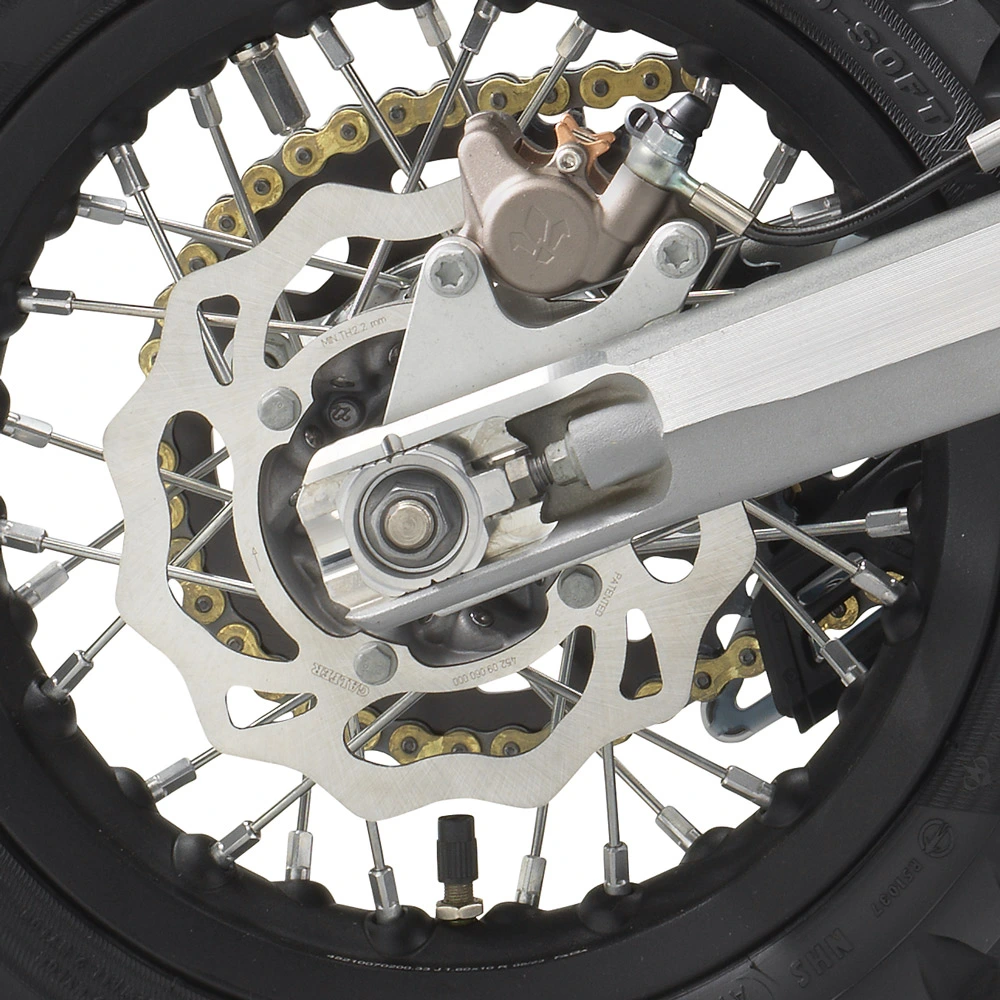

Brakes

By combining hydraulically operated brake calipers and waved, state-of-the-art discs front and rear, braking performance is consistent and reliable. Durability of the calipers and discs extends maintenance schedules while the forged rear brake pedal enhances control.

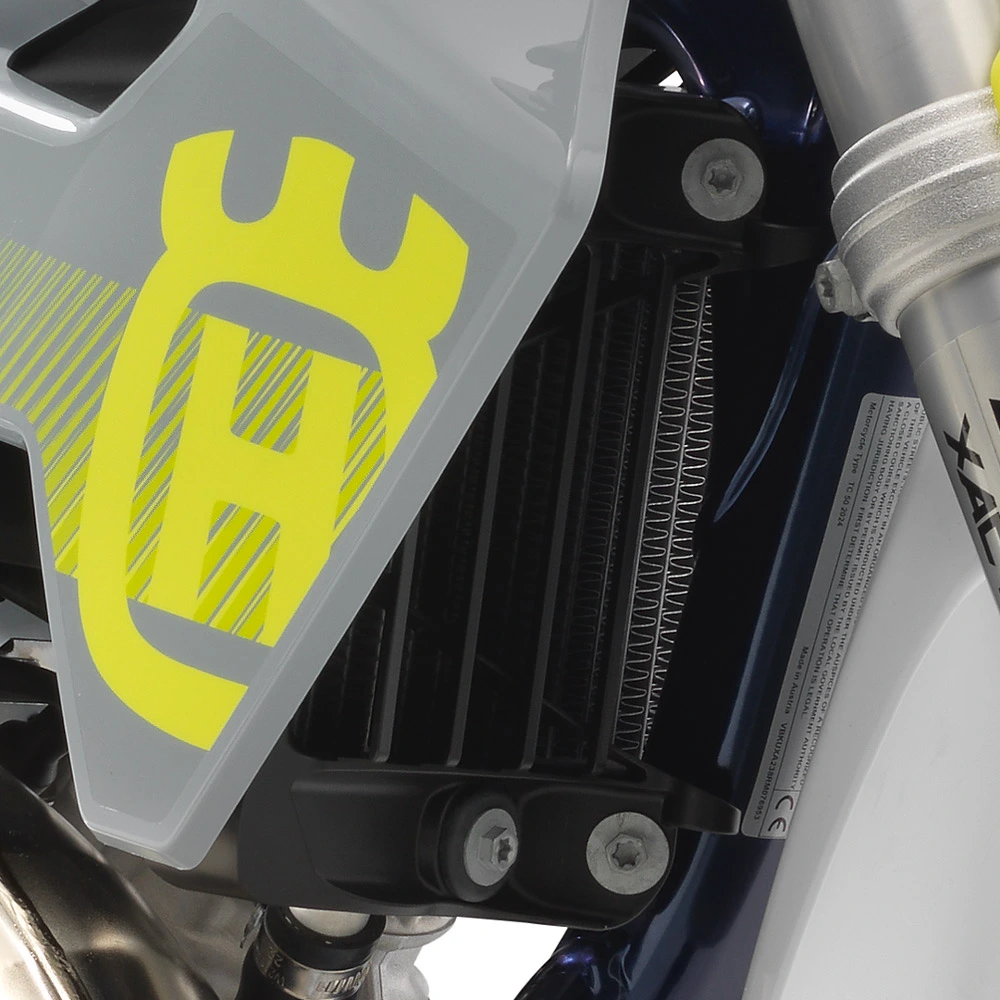

Radiators

For improved cooling, a larger capacity radiator replaces the two smaller radiators as found on the outgoing generation of the TC 50. Capable of holding more coolant and contributing to a simplified routing of the hoses, the radiator is adequately protected from any potential damage.

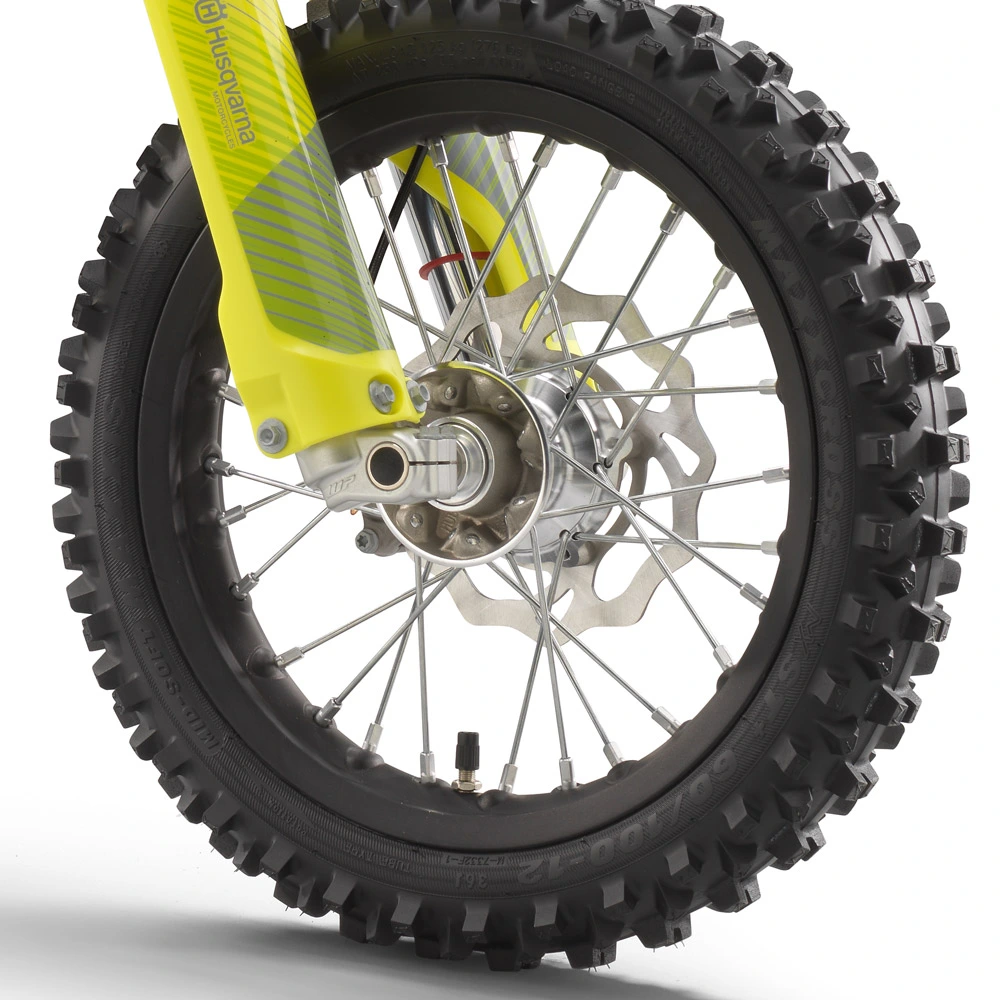

Wheels & tyres

Lightweight aluminium hubs are laced to black anodised, aluminium rims using strong spokes to create a reliable set of wheels. Complete with Maxxis Maxxcross MX-ST tyres, young riders will enjoy the benefits of excellent traction and predictability across a wide range of surfaces.

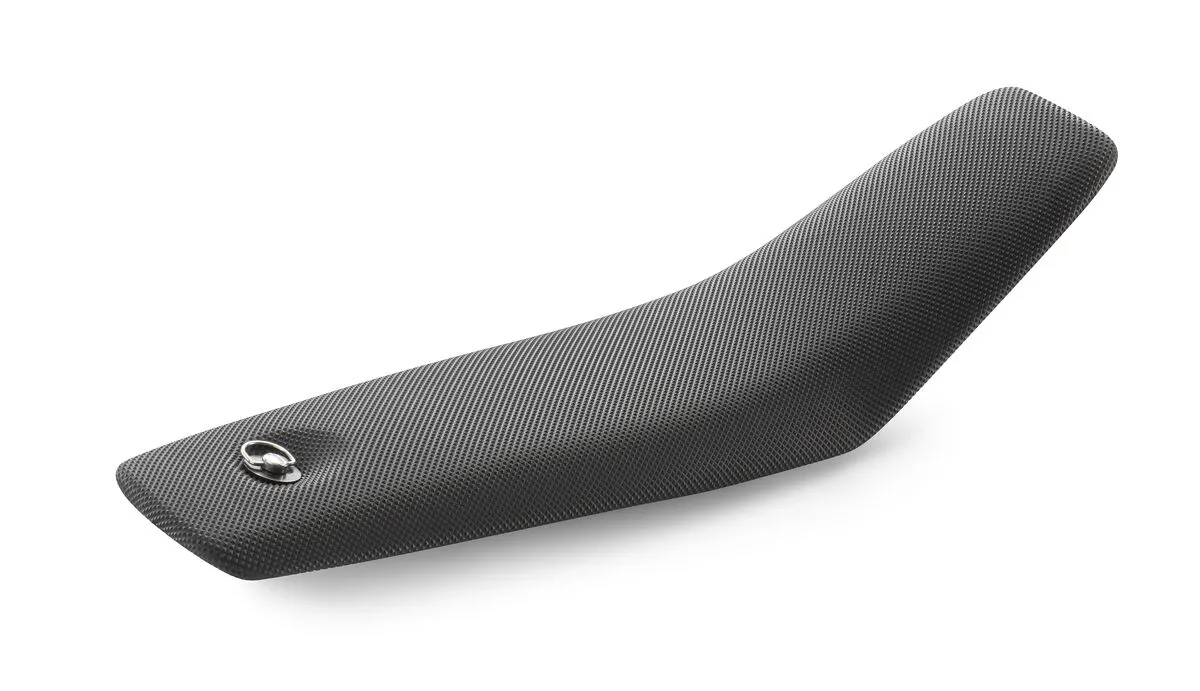

Seat

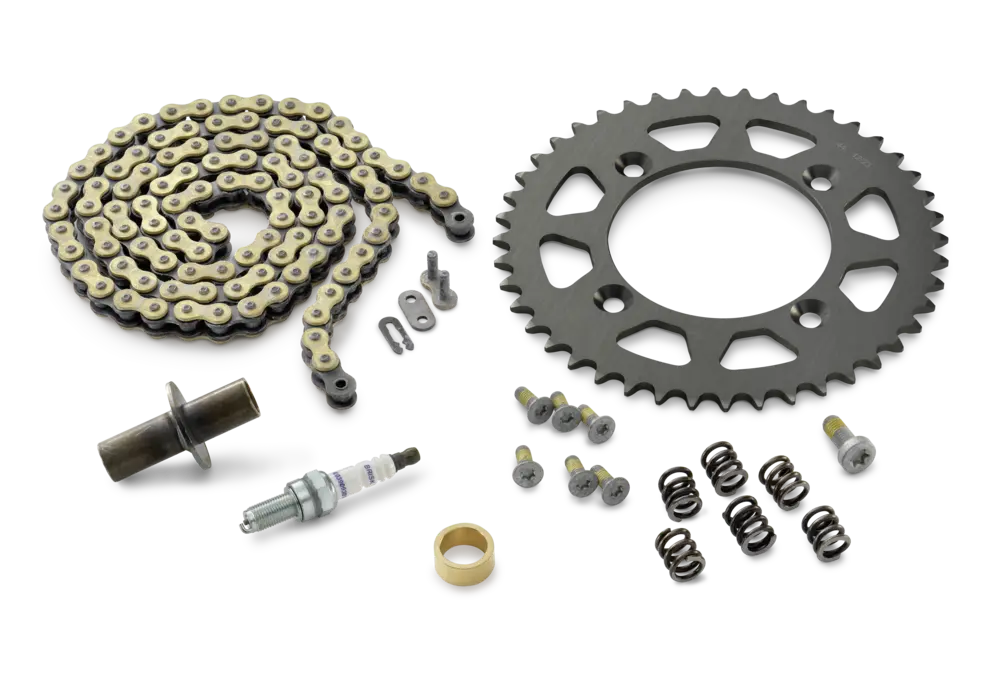

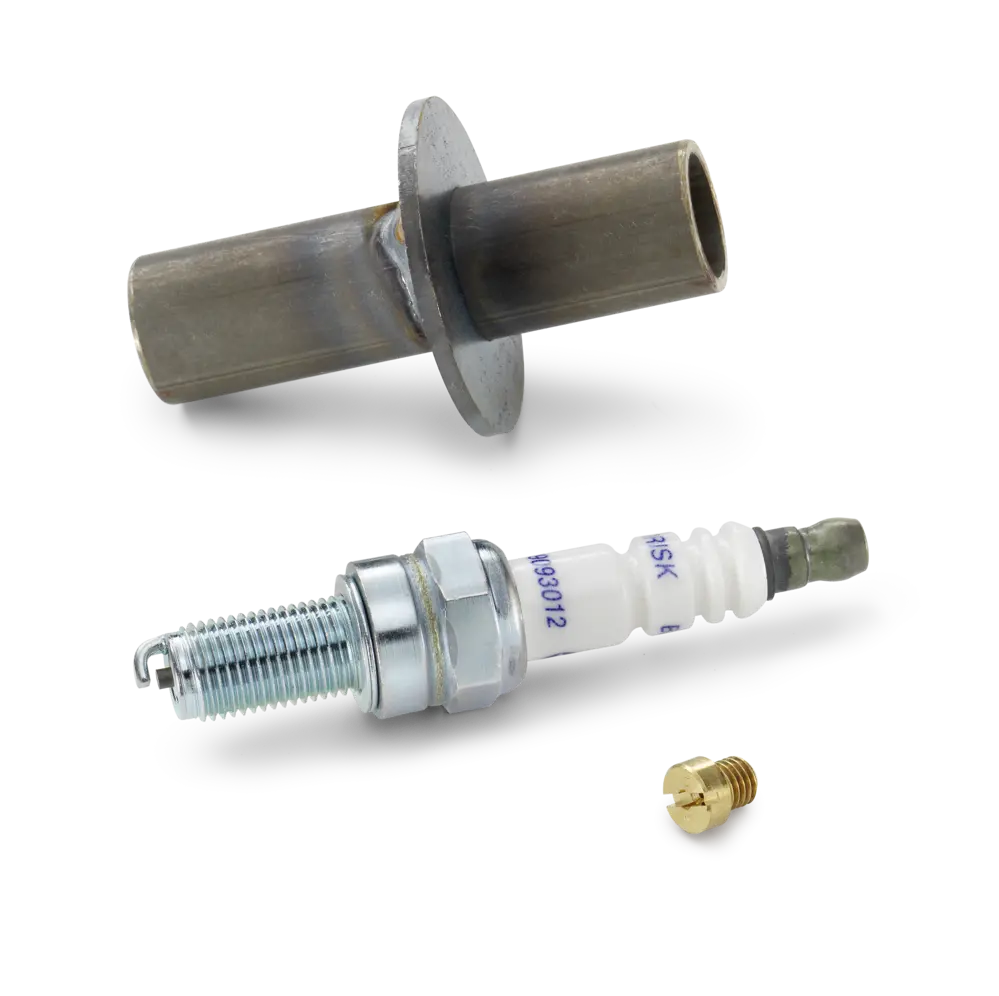

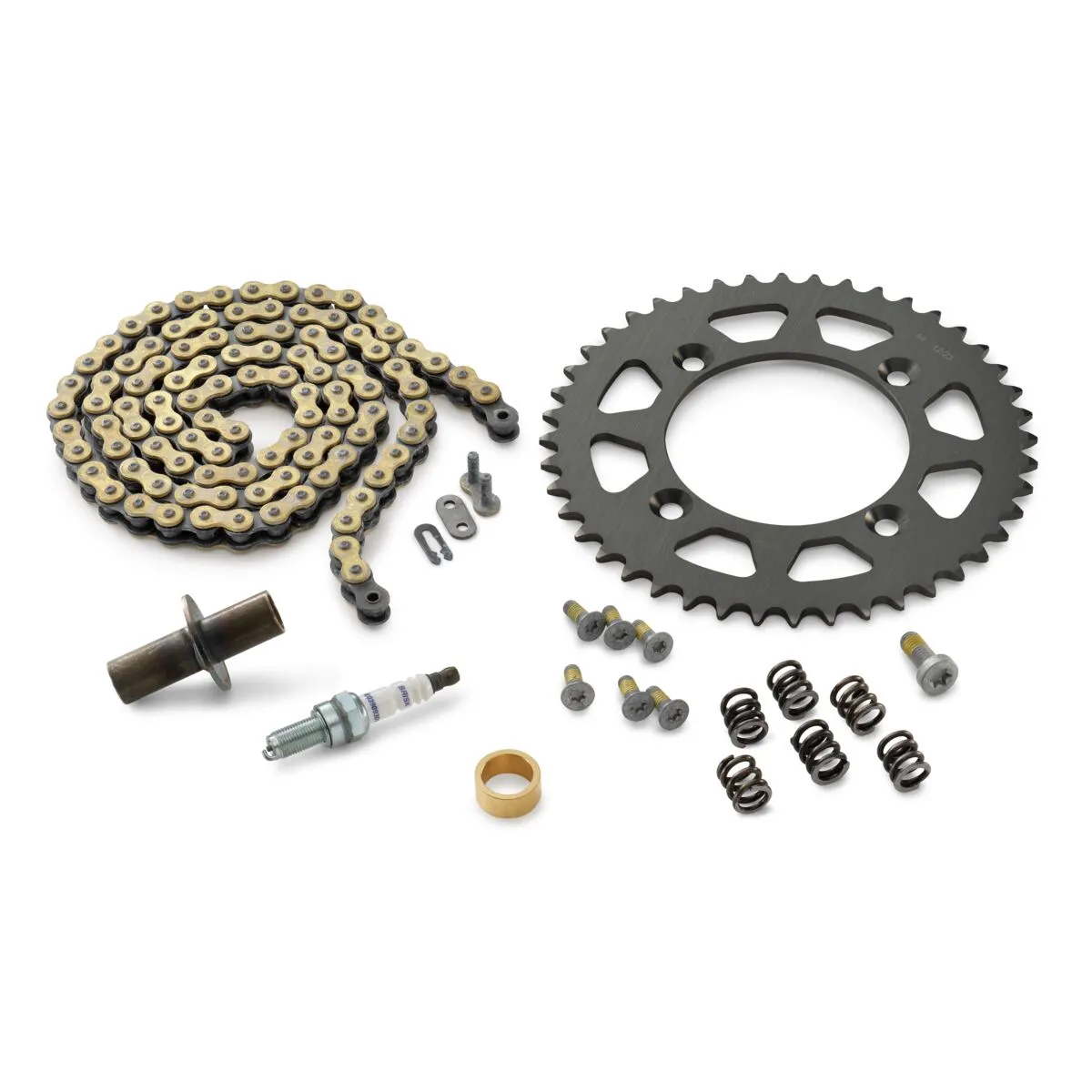

Power reduction kit

Lock-on grip set

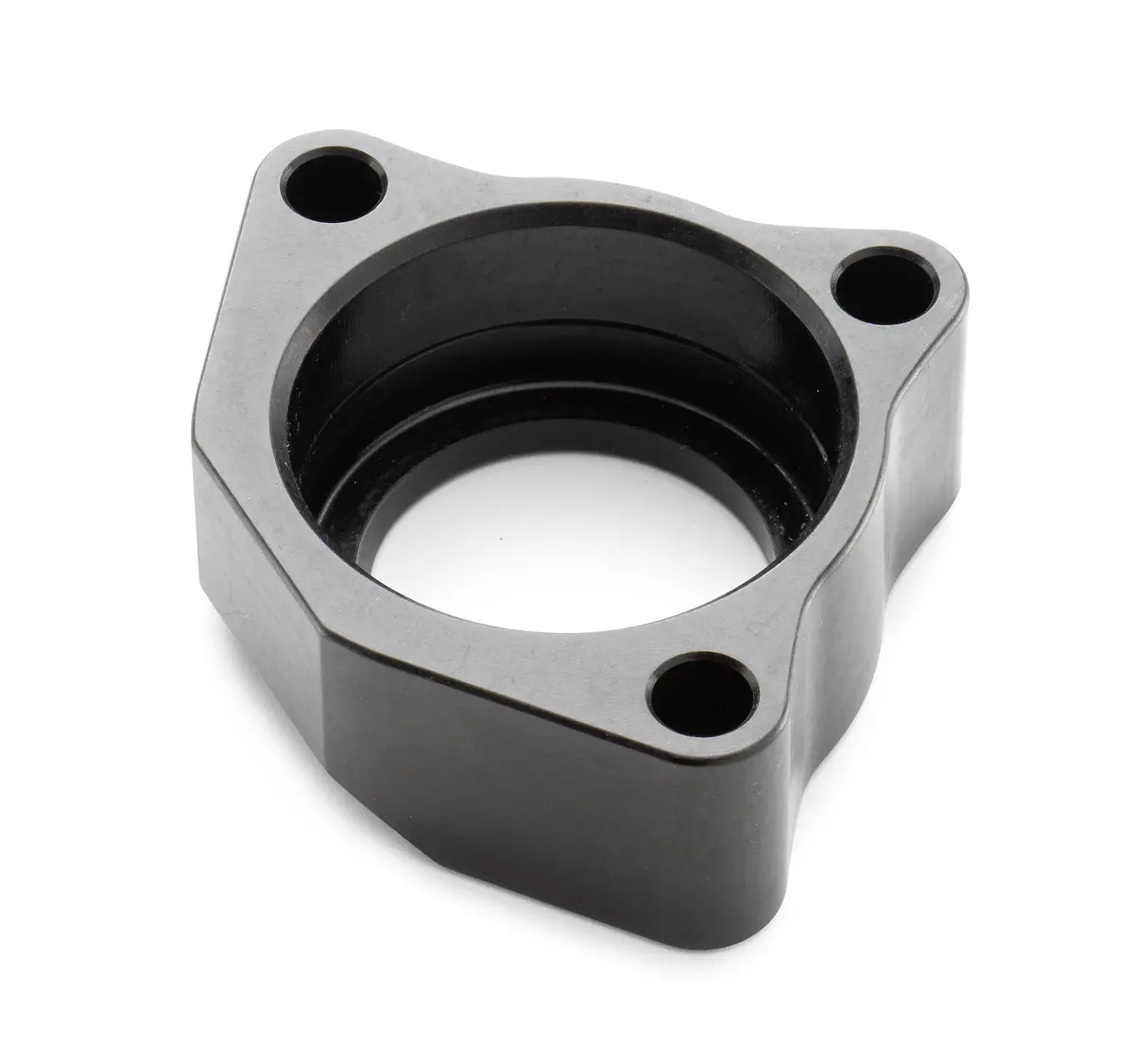

Intermediate flange

Factory reed valve case

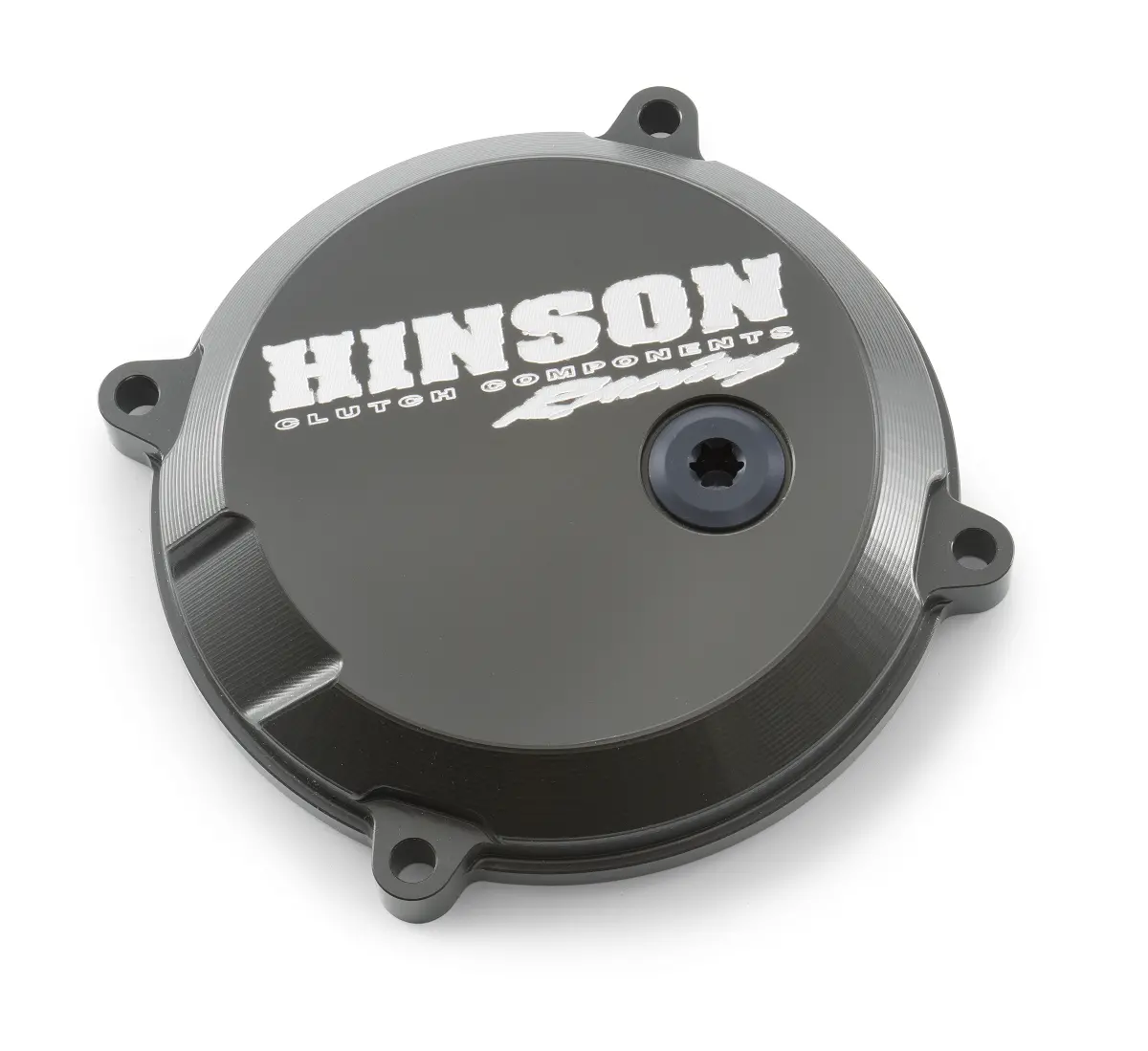

HINSON outer clutch cover

Power reduction kit

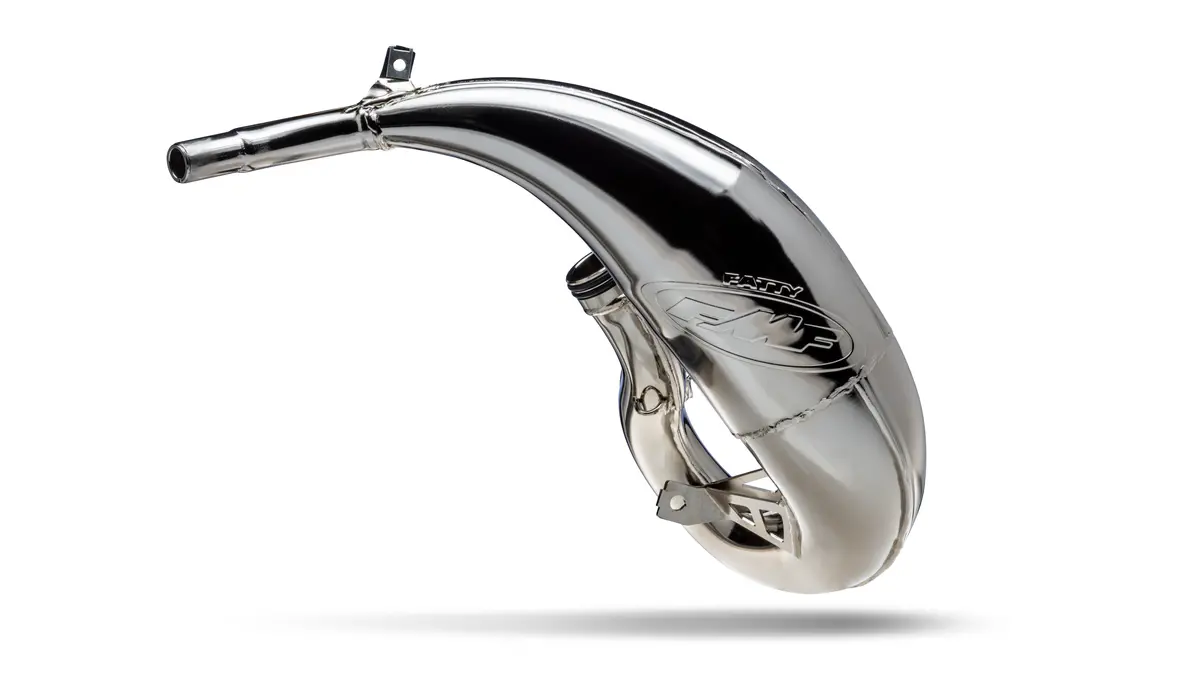

FMF Fatty expansion chamber

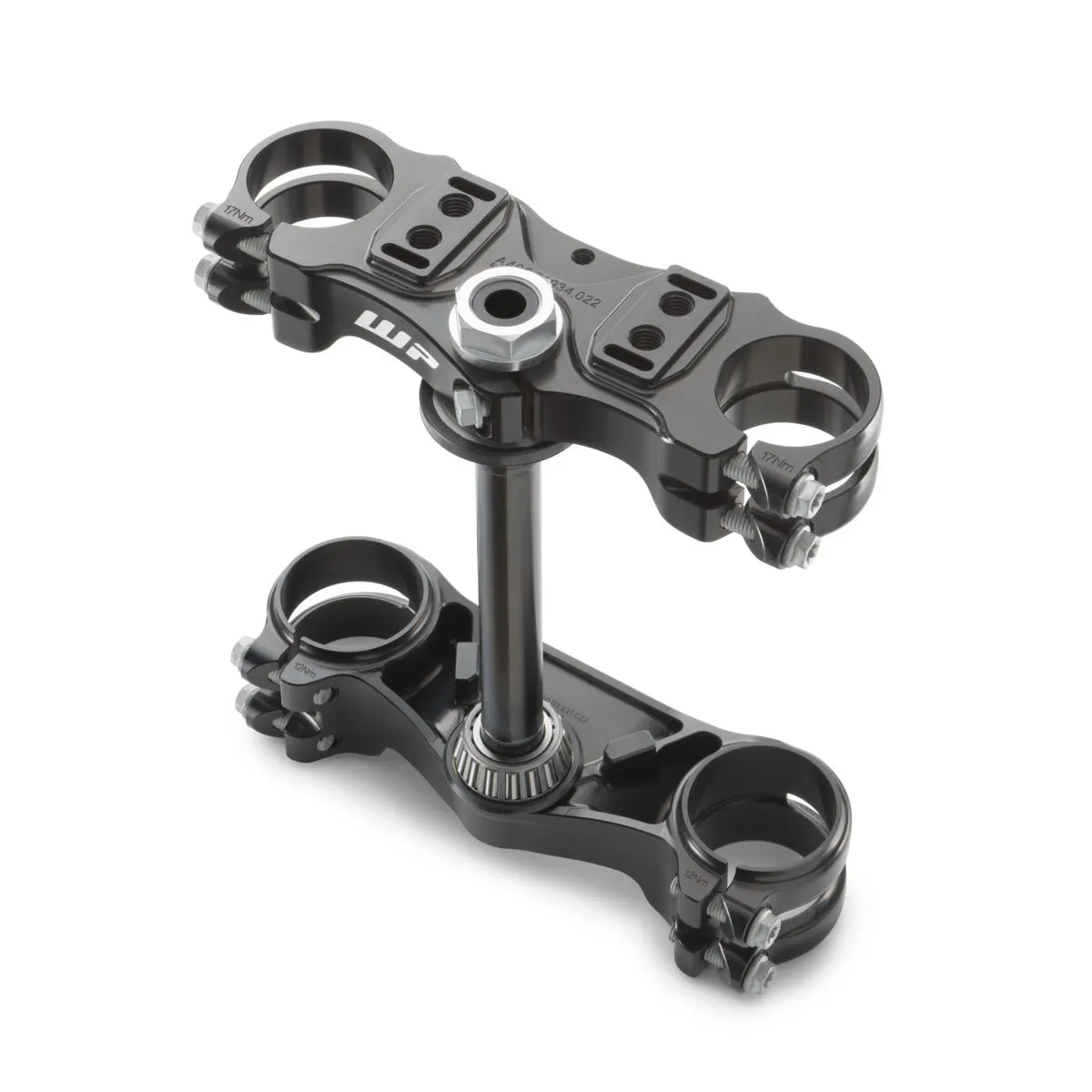

Factory triple clamp

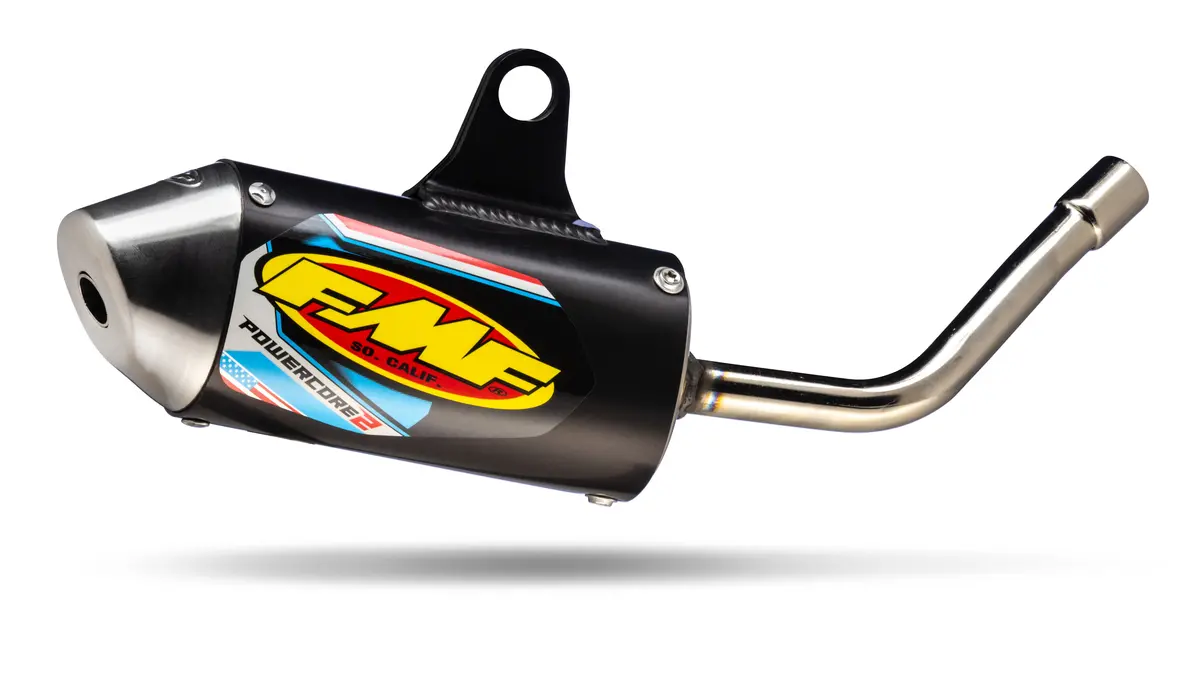

FMF Powercore 2 silencer

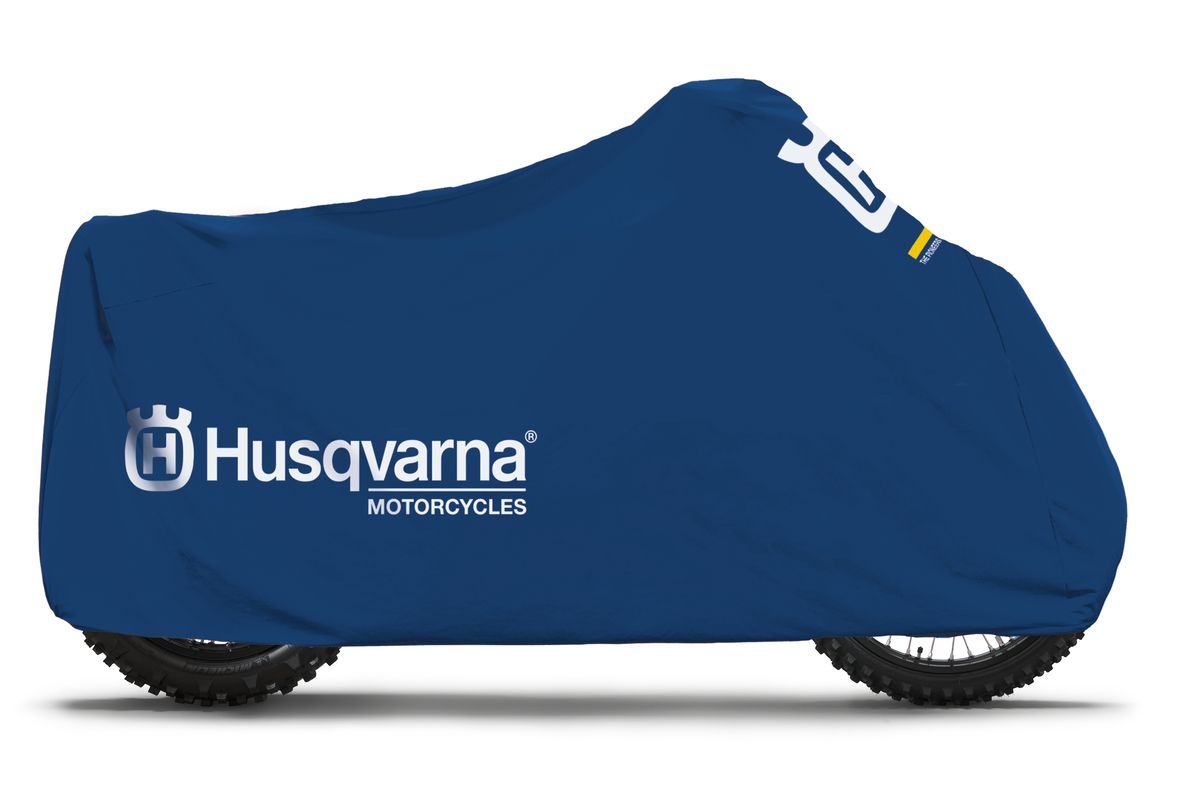

Protective outdoor cover
